€2,297.79 incl.btw
Connectivity
Ethernet Yes: 1 - 100 Mbit Ethernet Port
Electrical
Power Consumption, max. 2.2A @ 10.8VDC
Power Consumption, typical 1.5A @ 13.8VDC
Recommended Fuse Rating 5A
Supply Voltage 10.8 VDC - 31.2 VDC
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Environment
Operating Temperature Range Module: 5°F to 131°F (-15°C to 55°C )Transducer: 32°F to 95°F (0°C to 35°C)
Shock and Vibration 100,000 cycles of 20 G
Storage Temperature Range -22°F to 158°F (-30°C to 70°C)
Waterproof rating IP67
Physical
Dimensions (W x H x D) Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm)Transducer: 7.08" (179.9mm) x 4.47" (113.6mm) x 2.68" (68mm)
Mounting Type Module: Surface MountTransducer: Bracket Mount
Weight Module: 4.12 lbs (1.86 kg)Transducer: 3.55lbs (1.61kg)
Radar
Frequencies 650-1300 kHz
Max Depth 200' (60.96m)
Other
Warranty Period 2 years + 3 years of in service repairs or upgrades
Interface Ethernet to:HDS ProHDS LiveHDS CarbonElite FS

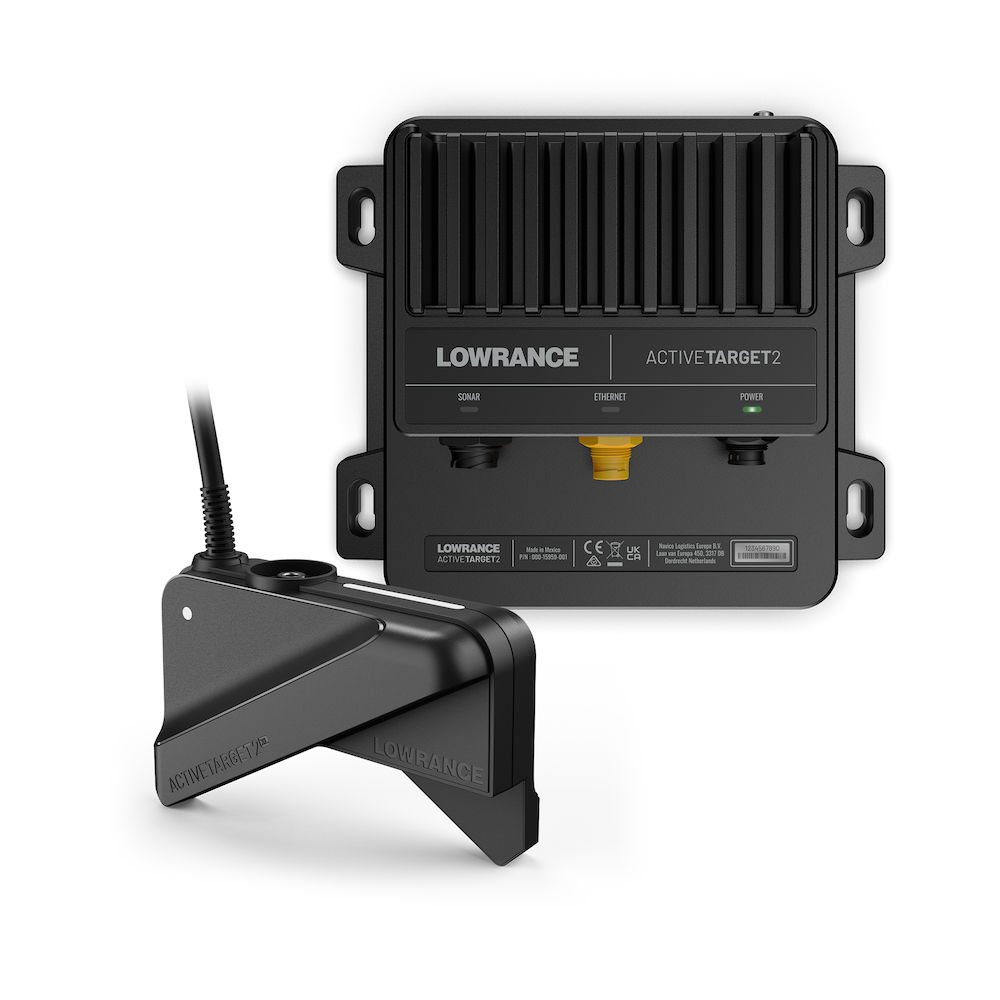

00-15961-001 - Active Target 2 Module ONLY
000-16491-001 - Activetarget 2XL Shaft Mount
000-0127-29 - Ethext - 15YL
000-00128-001 - Power Cable Standard 4Pin
Power Cable

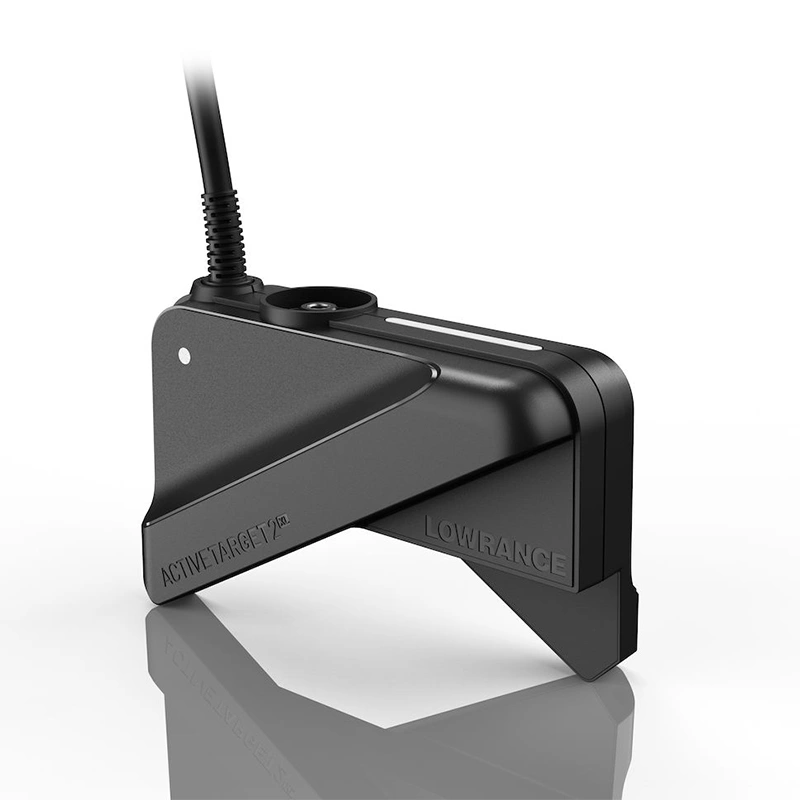

000-16489-001 - Activetarget 2XL Transducer ONLY
